MR52 (Expansion Board) User Manual SimpleAccess from support.simpleaccess.com
The MR52-S3 is a dual-card reader interface panel with on-board flexibility to connect to a wide range of security devices If you continue to use this site we will assume that you are happy with it
MR52 (Expansion Board) User Manual SimpleAccess

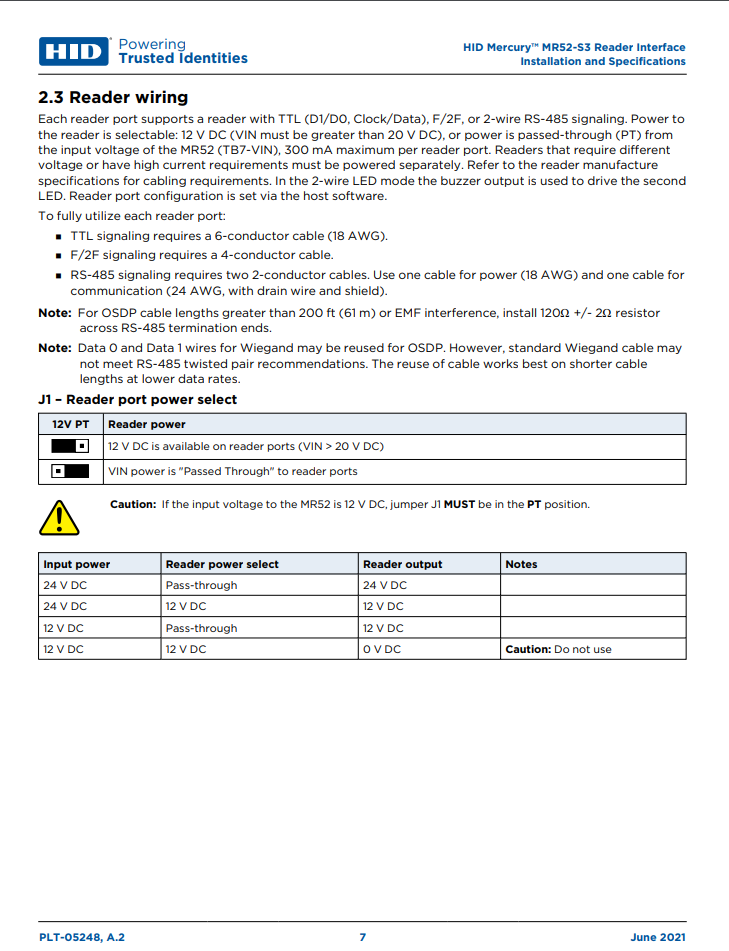

Six Form-C relay outputs may be used for strike control or alarm signaling. Each unit can connect 2 card readers, 8 general-purpose. Page 7: Reader Wiring Powering HID Mercury™ MR52-S3 Reader Interface Trusted Identities Installation and Specifications 2.3 Reader wiring Each reader port supports a reader with TTL (D1/D0, Clock/Data), F/2F, or 2-wire RS-485 signaling.
MR52 (Expansion Board) User Manual. The MR52-S3 provides a tristate LED control and buzzer control The MR52-S3 reader interface boards provide a solution to the OEM system integrator for interfacing to TTL (D1/D0, Clock/Data), F/2F, 2-wire RS-485 device and door hardware
MR52 (Expansion Board) User Manual SimpleAccess. The MR52 provides a tristate LED control, and buzzer control If you continue to use this site we will assume that you are happy with it
